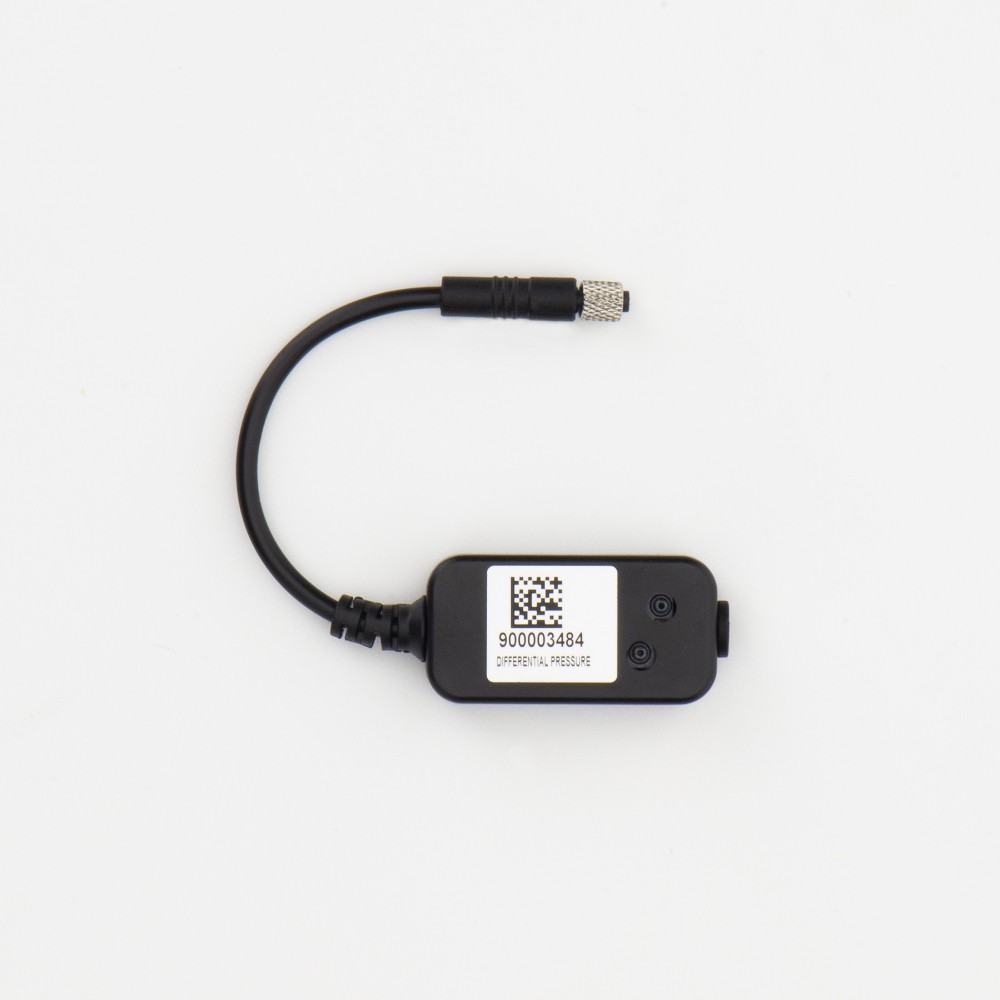

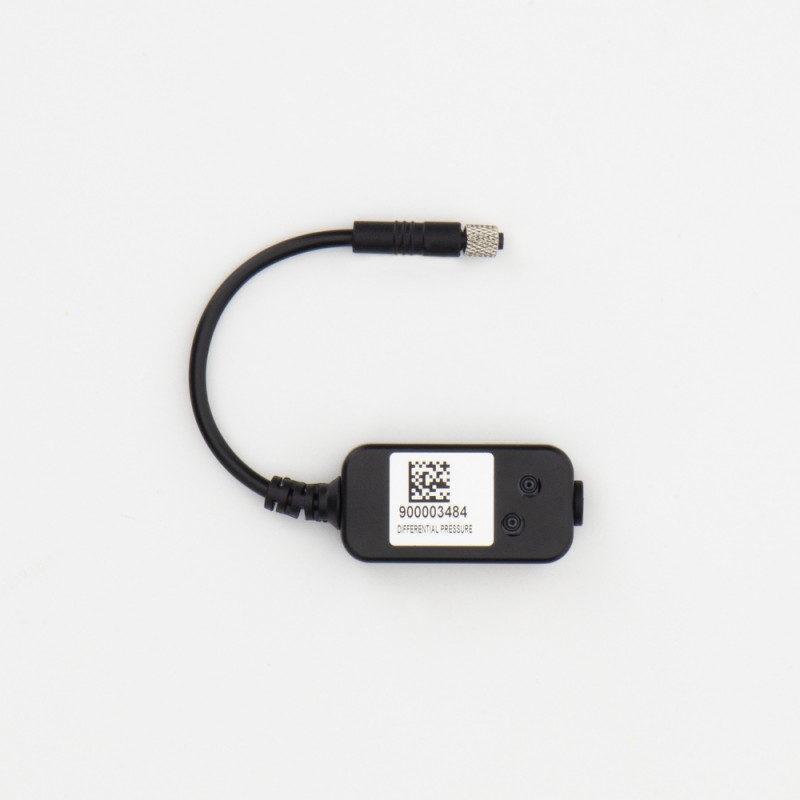

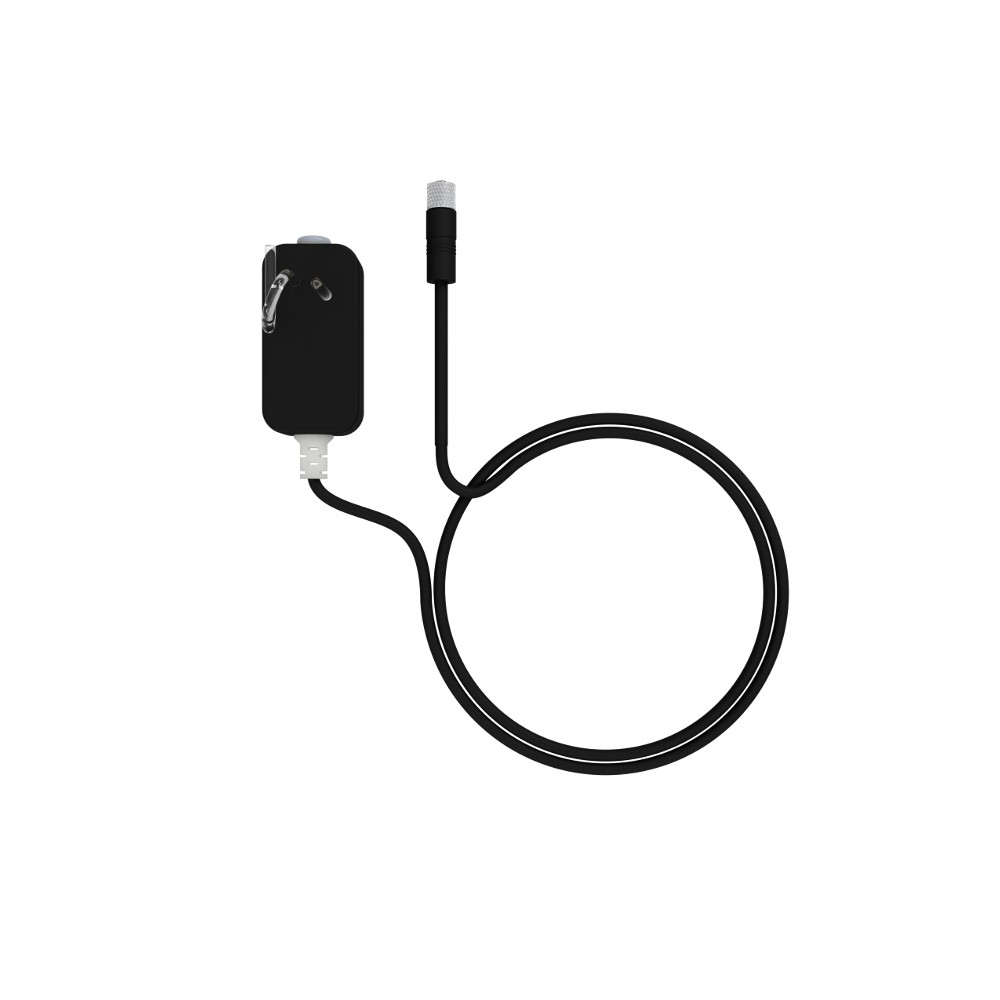

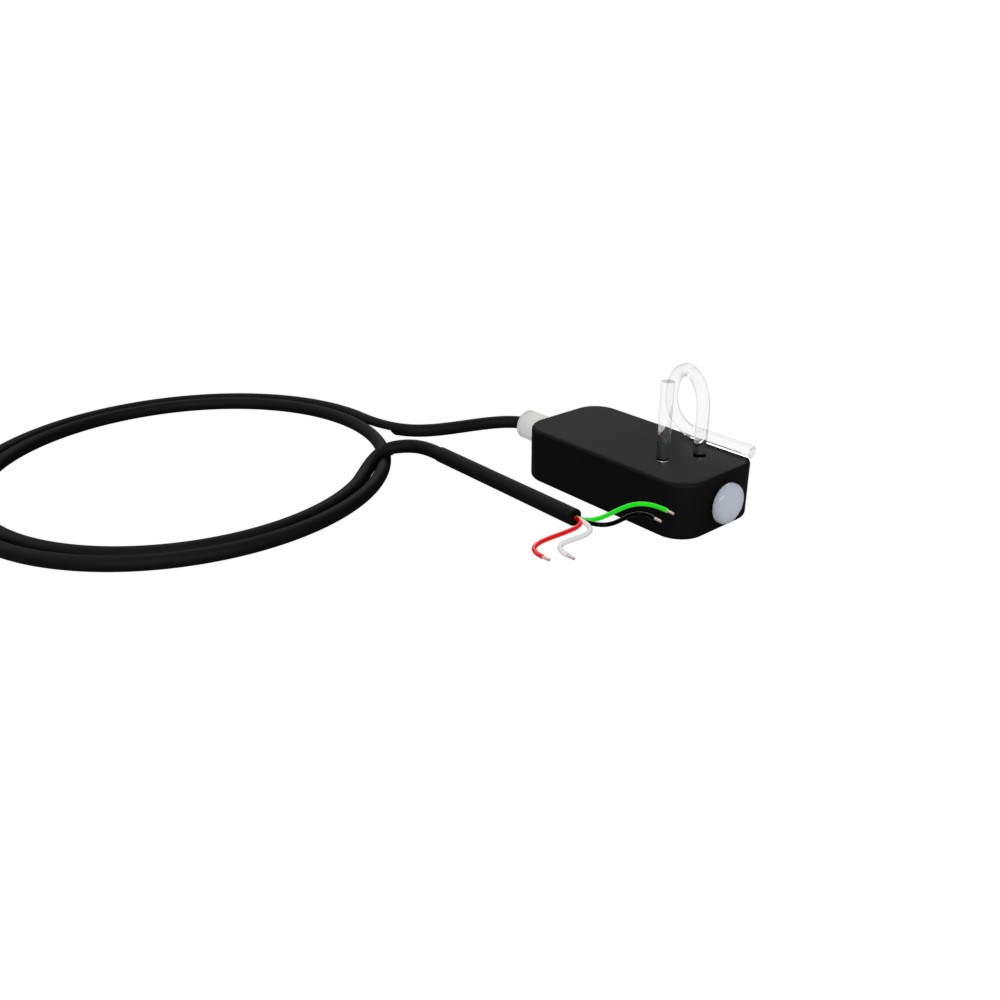

Differential Pressure Smart Sensor
REQUEST INFORMATION
Smart Sensor for differential pressure from -100 to 100 Pa.
The more you buy, the more you save!
5-19: 5% discount
20-49: 10% discount
50-199: 15% discount
200+: contact us for a personalized quote!
Discount directly in the cart!

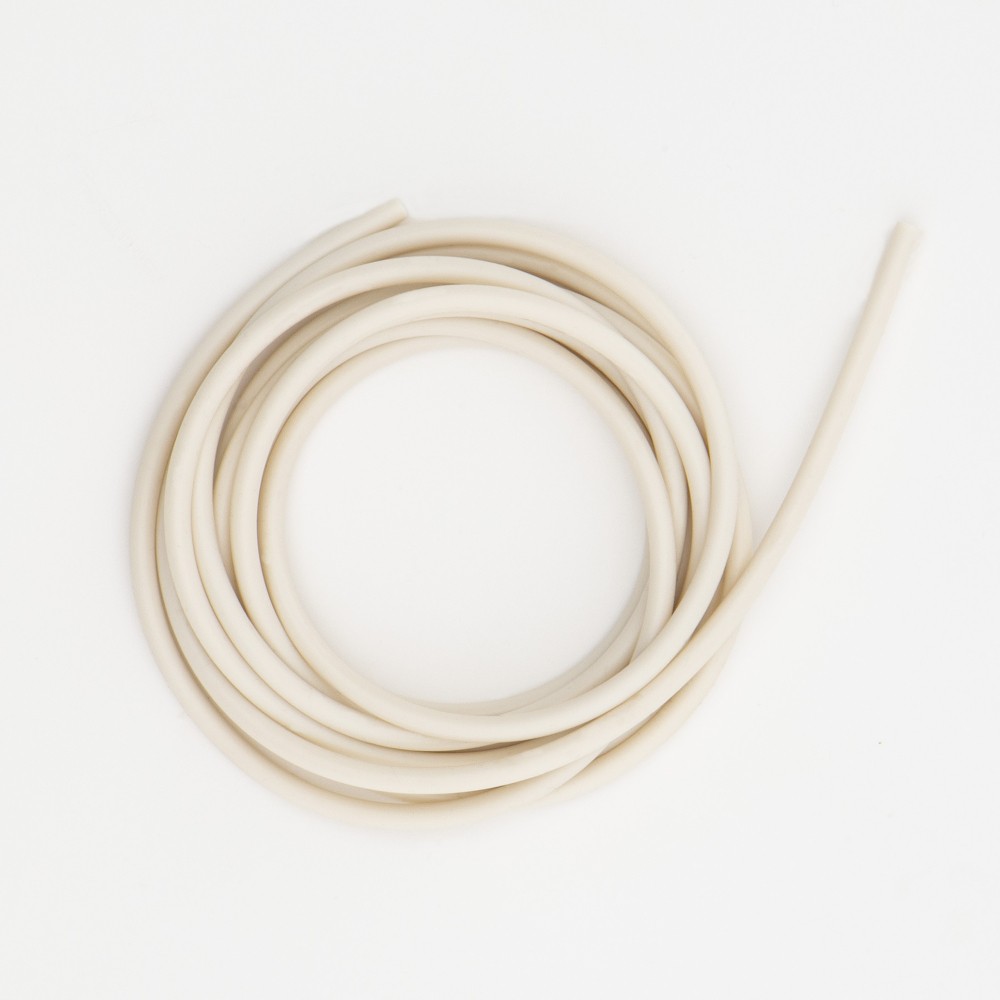

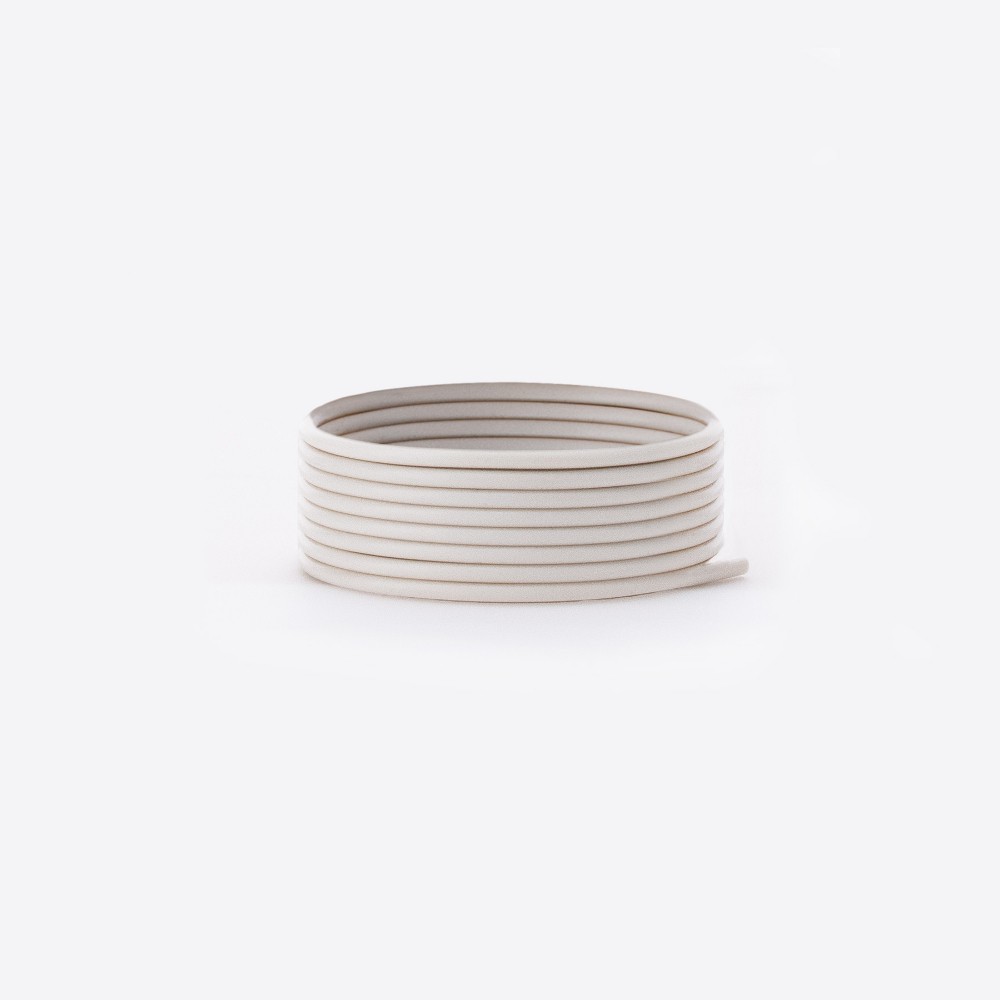

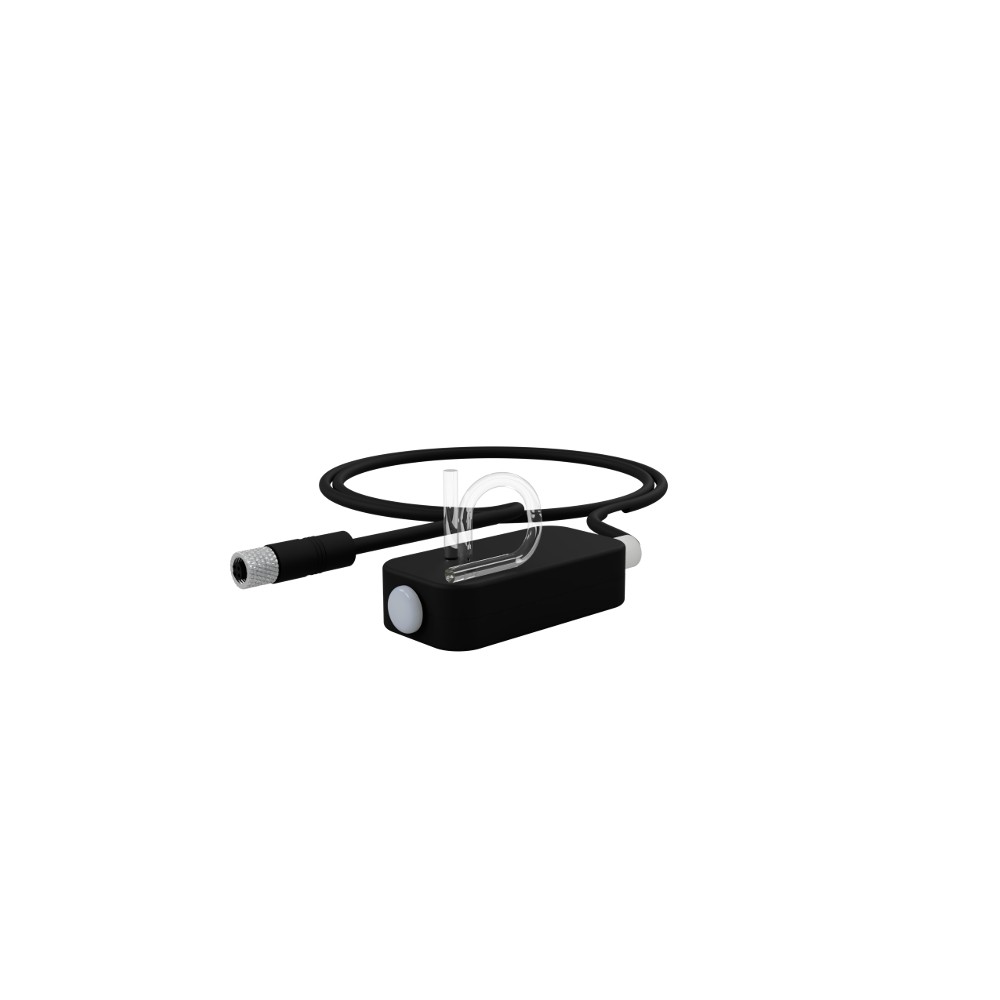

Digital sensor suitable for measuring the differential pressure in two different environments. Ideal for clean rooms, operating sales, laboratories. Equipped with pipe for connection to systems and to reach both environments. To allow the sensor to measure correctly, the pipes must be connected to the 2 inputs on the sensor, or in only one, the other is free. This Smart Sensor is able to detect differential pressures from -100 Pa to +100 Pa, with a resolution of 0.01 Pa. It does not require the passage of air.
Accredia traceable calibration certificate is included (standard calibration points: -100/0/100 Pa).
(note: the final product may be different from some designs in the pictures)
| Temperature Range | 0°C ÷ +50°C |
| Pressure Range | -100 Pa ÷ +100 Pa |
| Pressure resolution | 0,1 Pa |
| Pressure accuracy | ±2% typical a 25°C; ±2,5% max. |
| Pressure standard calibration points | -100 / 0 / 100 Pa |
| Pressure extra calibration points | Within the range -100 Pa ÷ +100 Pa |
| Pressure sensor type | With no air flow passage |
| Dimensions | 43 X 22 X 11 (mm) |

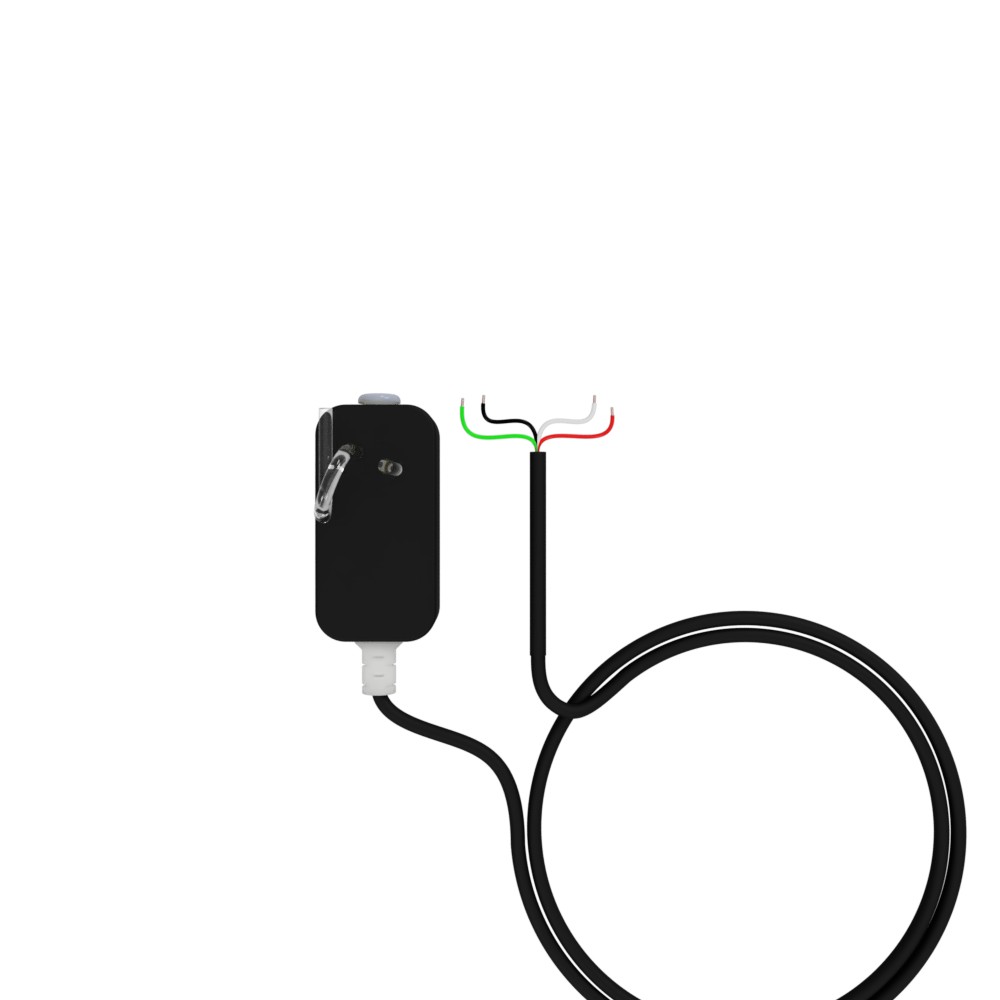

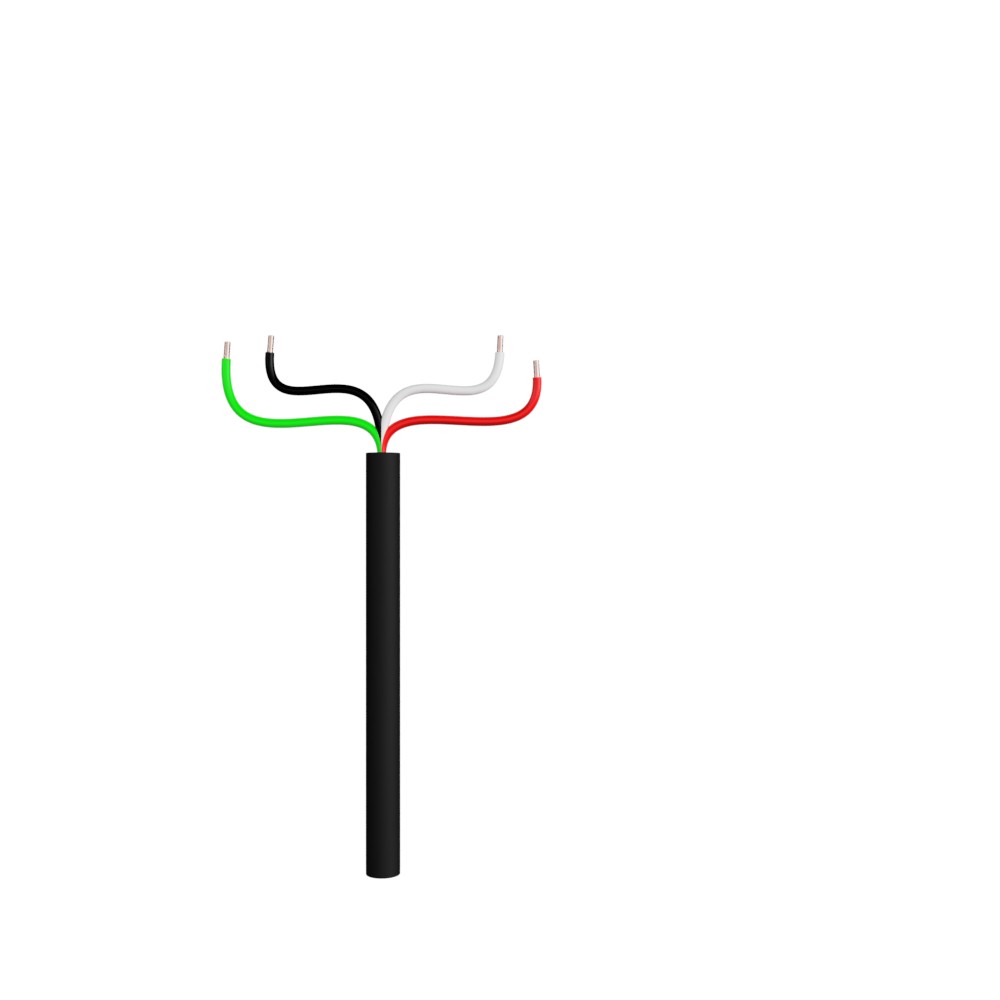

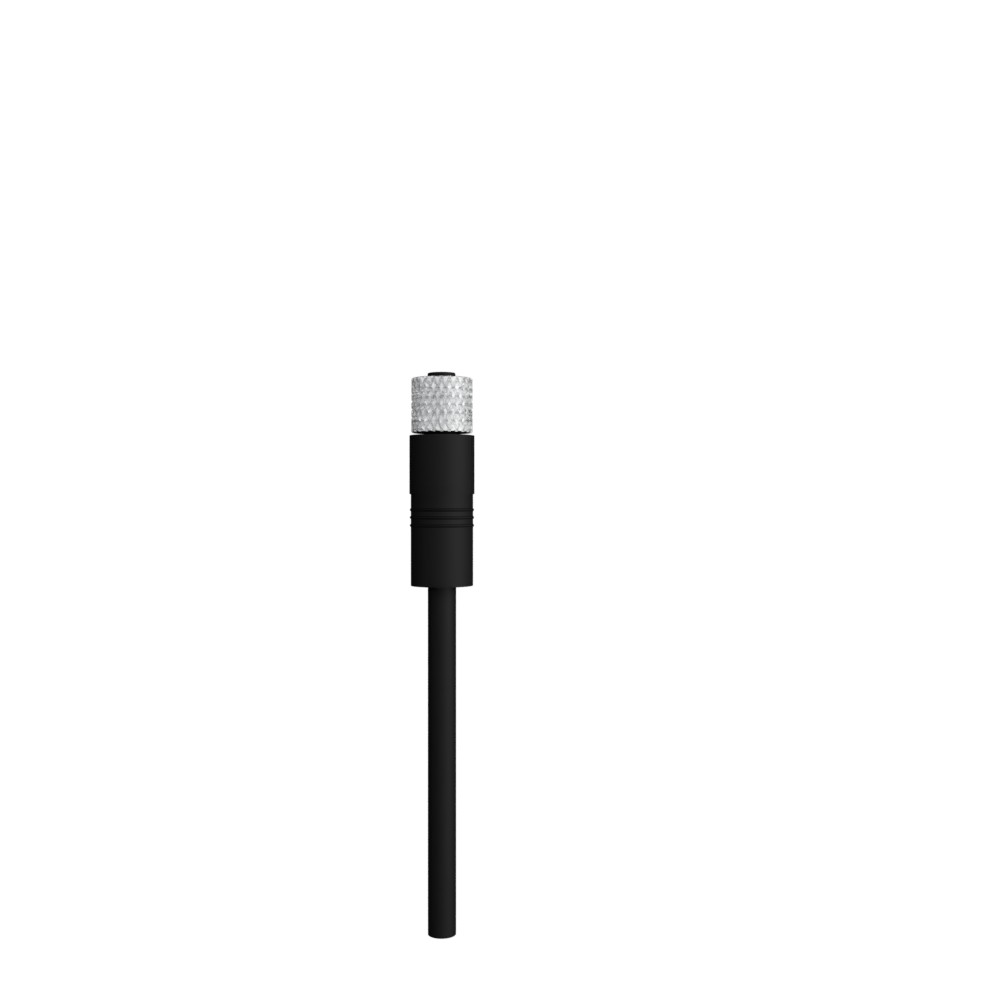

| Connection cable length | 10 cm |
| Supply voltage | 3.3 V |
| Pressure operative range | 25 bar absolute max |
